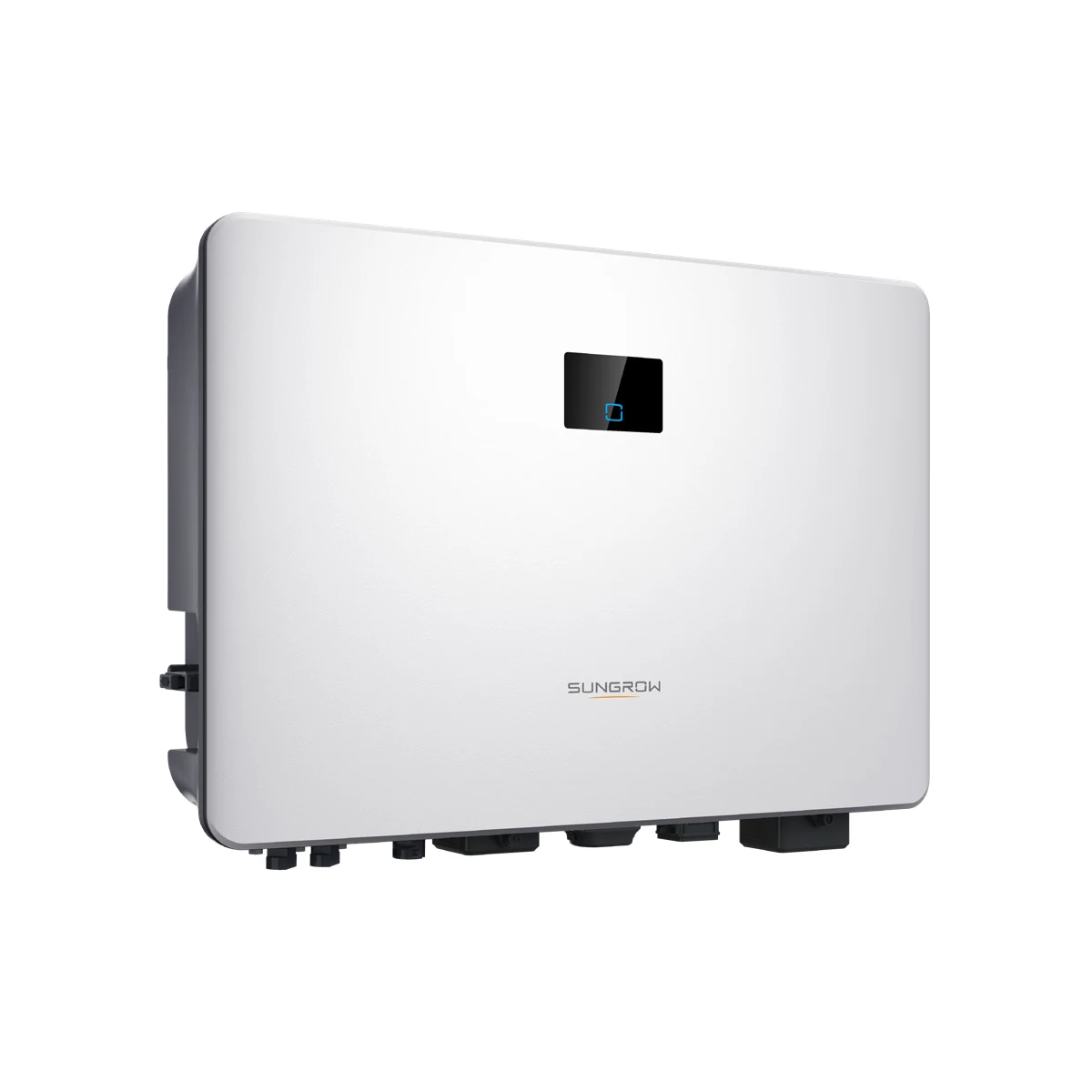

Sungrow SH3.0RS inverter 3kW

Inverter · SH-RSVerified source

Sungrow SH3.0RS

Manufacturer specifications, certifications, and resources for distributor project planning in Ukraine.

Specifications

Rated power: 3000 W
Phases: 1
Type: Hybrid
Warranty: 10 years
Series: SH-RS
Segment: residential

Resources

Technical details

AC Output

Max Apparent Power	3000
Max Output Current	13.7
Voltage Range Min	154
Voltage Range Max	276
Frequency Nominal	50, 60
Frequency Range	45-55 / 55-65 Hz
THD Percent	3
Power Factor Nominal	0.99
Power Factor Range	0.8 leading – 0.8 lagging
Feed IN Phases	1

Backup

Supported	Yes

Related products

DC Input

Recommended Max PV Power	4500
Max Voltage	600 V
Min Voltage	40 V
Startup Voltage	50 V
Rated Voltage	360 V
MPPT Voltage Range Min	40
MPPT Voltage Range Max	560
MPPT Count	2
Strings Per MPPT	1
Total String Inputs	2
Max Current Per MPPT	16
Max Current Per String	16
Max Short Circuit Current	40
Connector Type	MC4

General

Compatible Batteries	Sungrow — SBR064, SBR096, SBR128, SBR160, SBR192, SBR224, SBR256; BYD — HVS 5.1, HVS 7.7, HVS 10.2, HVM 8.3, HVM 11.0, HVM 13.8, HVM 16.6, HVM 19.3, HVM 22.1; Pylontech — Force H1, Force H2
