Inverter · SG-HXVerified source

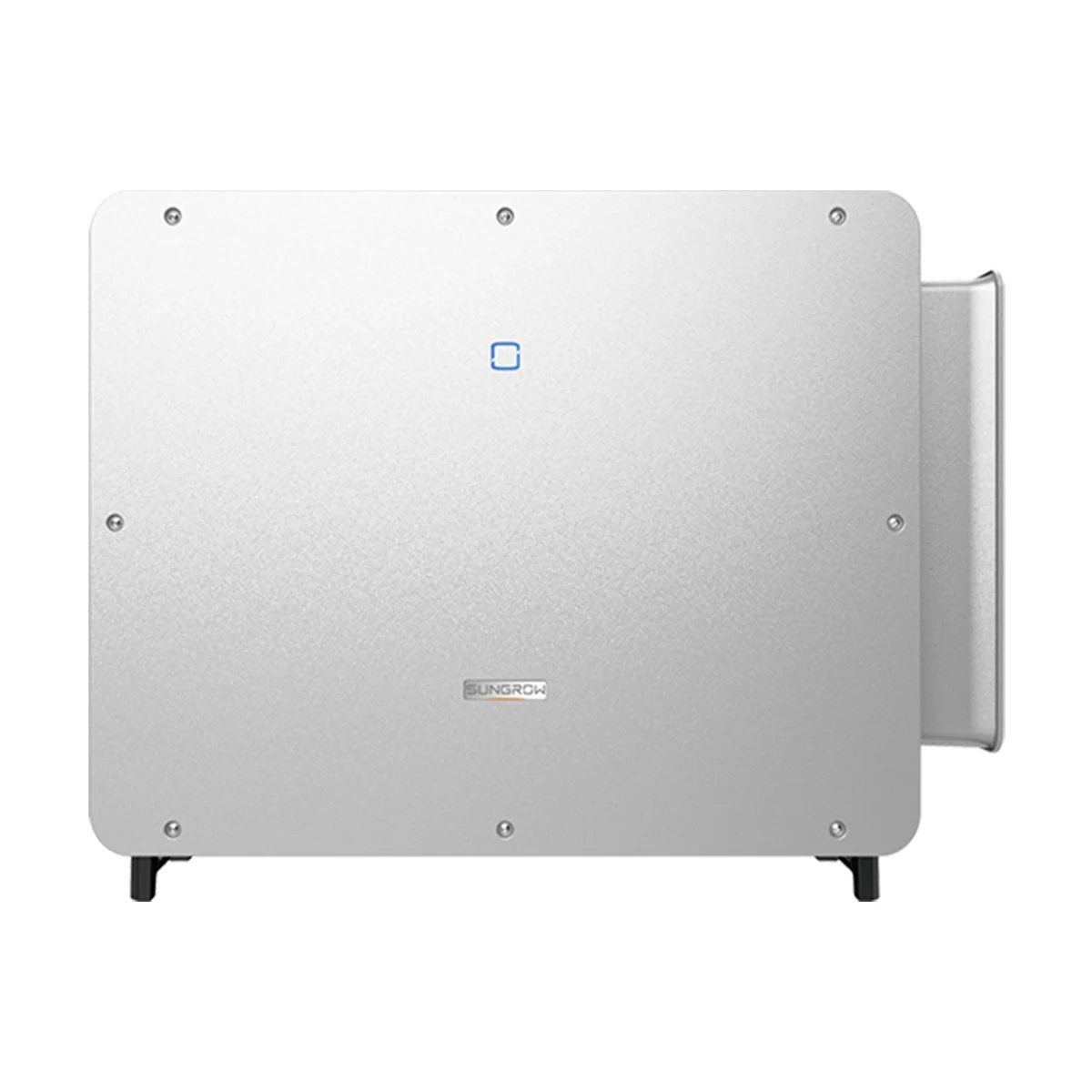

Sungrow SG285HX
Manufacturer specifications, certifications, and resources for distributor project planning in Ukraine.
Specifications
- Rated power
- 285000 W
- Phases
- 3
- Type
- On-grid
- Warranty
- 10 years
- Series
- SG-HX
- Segment
- utility
Resources
Technical details
AC Output
| Max Apparent Power | 313500 |
|---|---|
| Voltage Range Min | 640 |
| Voltage Range Max | 920 |
| Frequency Nominal | 50, 60 |
| THD Percent | 3 |
| Power Factor Nominal | 0.99 |
| Power Factor Range | 0.8 leading – 0.8 lagging |
| Feed IN Phases | 3 |
Certifications
| IEC 62109 | Yes |
|---|---|
| EN 50549 | Yes |
| CE | Yes |
| Tüv |
